GUY GRIP DEAD END
GUY GRIP DEAD END
GUY GRIP DEAD END
GUY GRIP DEAD END

GUY GRIP DEAD END

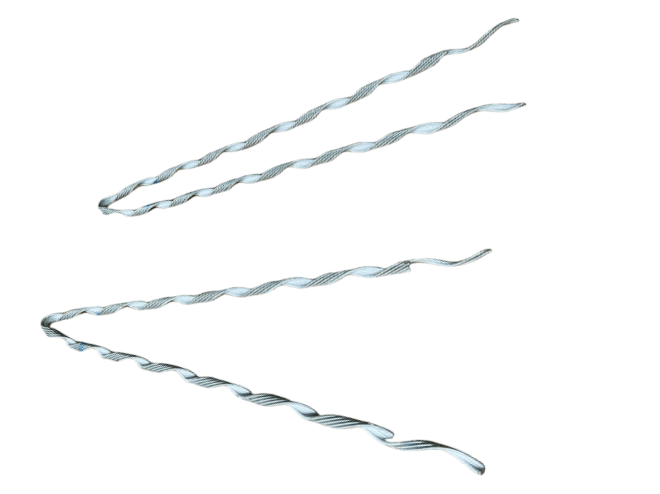

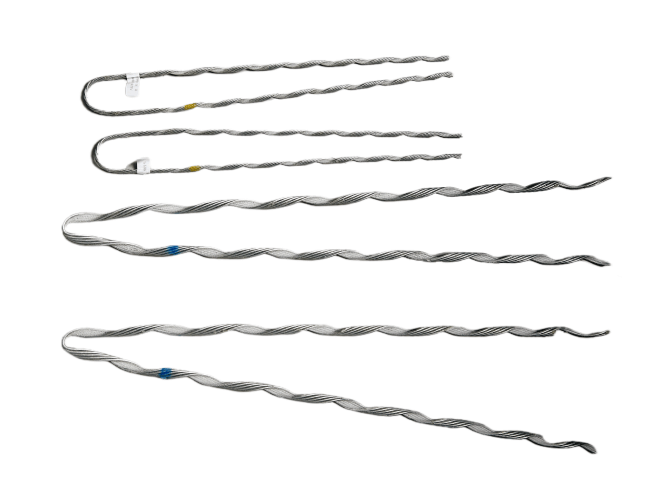

The guy grip dead end installed at the top, the breaker, and the anchor, provide today’s most effective method for securing the guy strand.

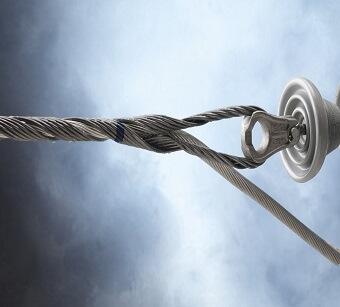

The guy grip dead end was the first to offer the cabled loop, a feature that provides more durability, easier tensioning, and adaptability to multiple guying.

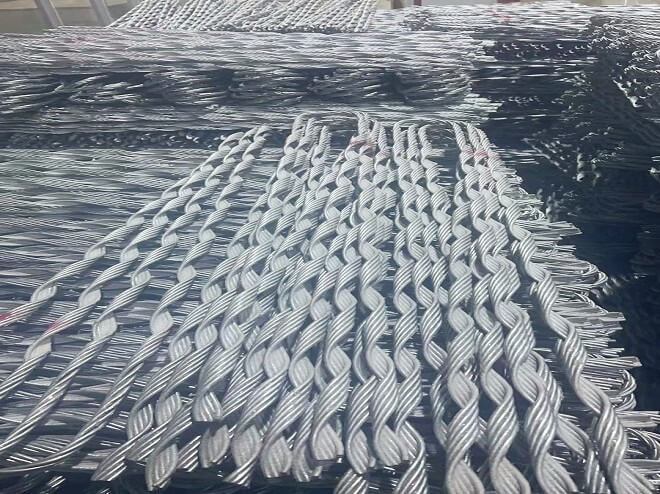

Guy grip have a special design with extra legs on each grip.  It can provide efficient and fast termination for the guy strand. Normally, the material of this brace grips is hot dip galvanized steel, which can provide 100% rated strength of the guy strand. This material is also anti-corrosion, which ensures grips without rust applications.

Size (mm) Strand
Construction
Mean
Diameter
(mm)
Length
(mm)
Color
Code
Wt./Lbs.
Per Carton
3⁄16" (4.7) 7w .186" (4.7) 20" (508) Red 30
7w .195" (4.7)
1/4" (6.3) 3w .259" (6.5) 25" (635) Yellow 24
7w .240" (6.0)
5⁄16" (7.9) 3w .312" (7.9) 31" (788) Black 39
7w .312" (7.9)
7w .327" (7.9)
3/8" (9.5) 3w .356" (7.9) 35" (788) Orange 51
7w .360" (9.1)
7/16" (11.0) 7w .435" (11.0) 38" (965) Green 40
1/2" (12.7) 7w .495 (12.6) 47" (1194) Blue 68
19w .500 (12.7)
* Can be customized according to your requirements







APPLICATION

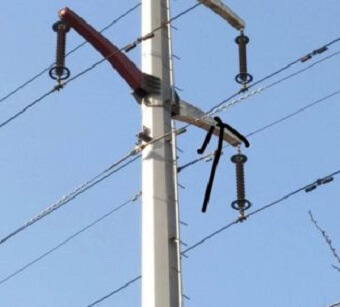

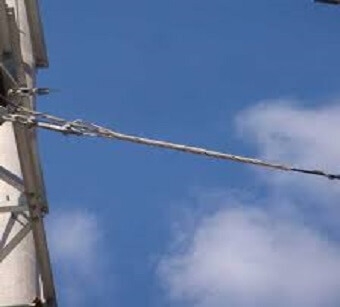

Guy grip dead end are designed for use on transmission, antenna, communications, and other types of guyed structures that require, the use of large guy strands, optical cable protection fittings, optical cable tight line, electrical cable fitting, and overhead line accessories.
